Liberty 3036lsg202-sc 2 HP, Simplex Grinder Package, 1ph, 208-230v, 1 1/4" Discharge With 30" x 36" Basin, Steel Cover And Standard Alarm

Price: $4,997.25 per Pieces

Availability: Ships within 1-3 business days

Description

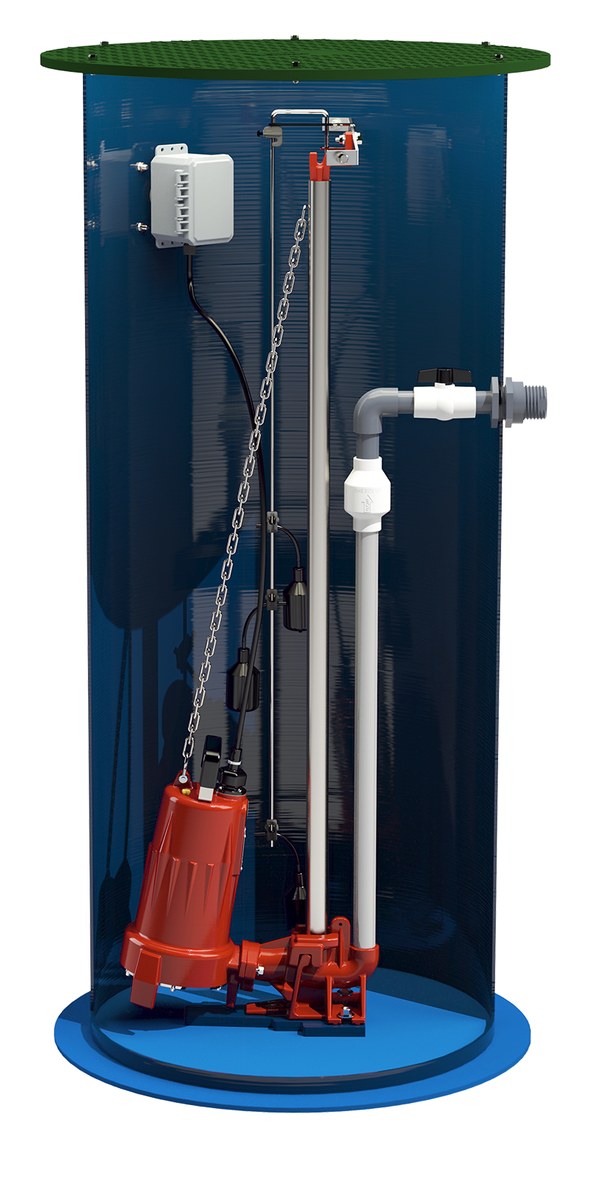

The Liberty 3036LSG202-SC is a factory pre-assembled 3000-Series simplex grinder package. A single-stage LSG-Series 2 HP Omnivore grinder pump sits in a 30" diameter fiberglass basin with an anti-flotation collar, on a factory pre-assembled guide rail system (galvanized rails), with an integral check valve and Schedule 80 PVC discharge piping with a ball valve down to a 1-1/4" discharge. Floats for pump control and alarm are pre-mounted, and the basin ships with a steel cover, a 4" fiberglass inlet hub with rubber pipe seal, stainless steel supports and brackets, a pre-mounted NEMA 4X junction box, and a stainless steel chain for pump lift-out. Wired for single-phase power at 208-230V with a 25' power cable. It ships with a standard ALM-2W alarm float switch (this basin height doesn't include a full control panel). Shipping weight approximately 300 lb.
